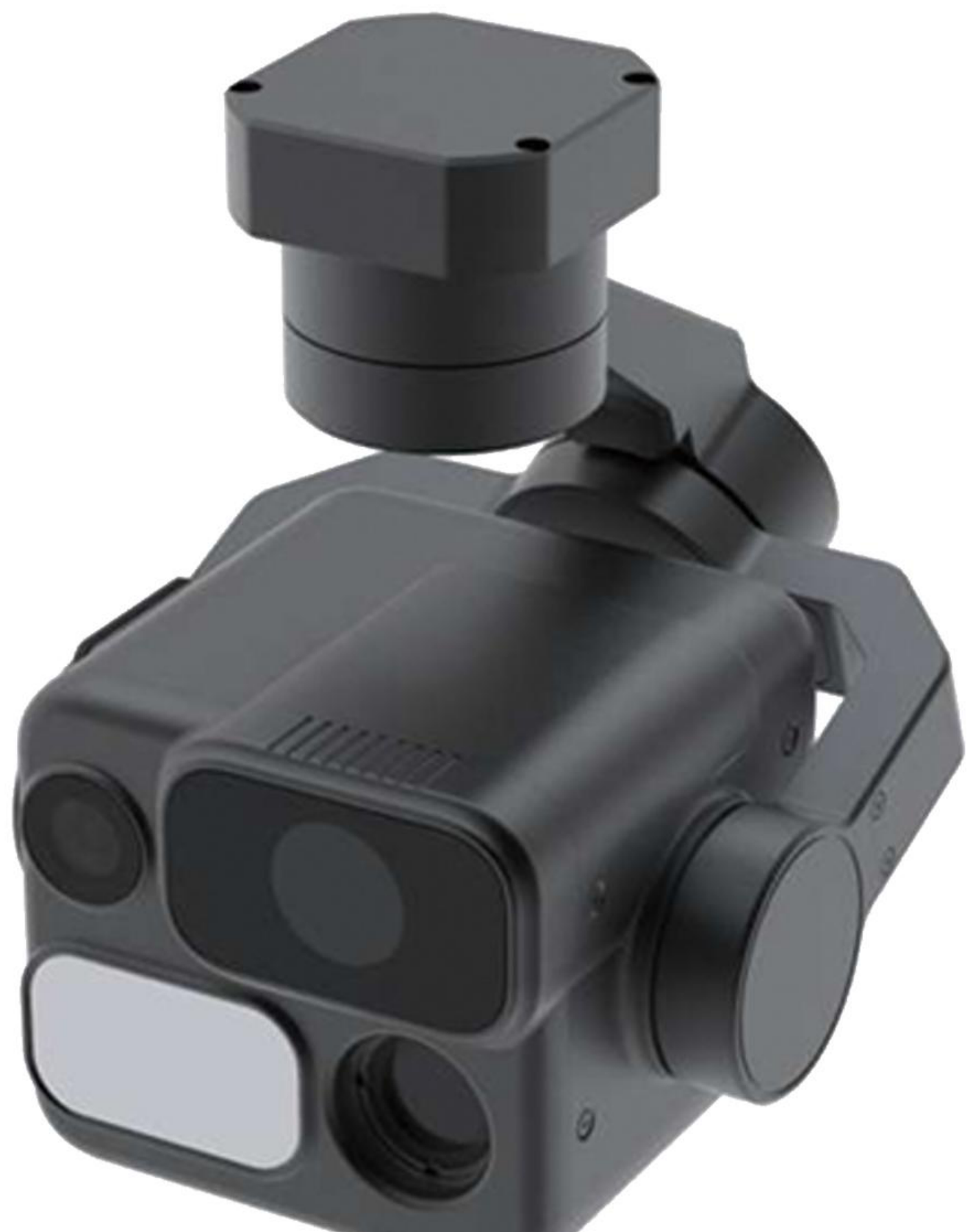

The 350B Quad-Sensor Pod is suitable for drones of all sizes, featuring 48 MP wide-angle and zoom cameras, 1.2 km laser rangefinder, and 640×512 infrared thermal imaging with 6 TOPS AI computing.
Key Capabilities
- Dual 48 MP visible-light cameras: wide-angle (24 mm) and zoom (81–270 mm)
- 22x lossless zoom with dual visible-light cameras
- 640×512 infrared thermal imaging with 13 mm focal length
- 1,200 m laser rangefinder for quick target positioning
- 6 TOPS AI computing for on-board recognition and tracking
- Split-screen display with any sensor combination
- On-board software for rapid AI model deployment
- 300 g lightweight design compatible with various drone platforms
Technical Specifications
| Operating voltage | 12V |
|---|---|
| Weight | 300 g |
| Operating temperature | -20 to 50°C |
| Control modes | UART / UDP / S.BUS |
| Protection level | IP44 |
| Pan range | ±150° |
| Roll range | -85° to +85° |
| Tilt range | -135° to +45° |
| Drift angle | ±0.01° |
| Visible light camera | 1/2″ SONY CMOS, 48 MP |
| Wide-angle focal length | 24 mm, 11x hybrid zoom |
| Zoom focal length | 81–270 mm, 22x lossless zoom |
| Infrared camera | 640 × 512, 13 mm focal length |
| Photo resolution | 1200 / 2000 / 2400 / 4800 |
| Video resolution | 4000 × 3000 @ 30fps |
| Laser rangefinder | 1,200 m |
| Built-in computing power | 6 TOPS |
| Tracking function | Supported |
| Local storage | 128 GB |
Applications
Multi-sensor reconnaissance, precision target positioning, thermal heat-source localization, and flexible imaging configurations for professional drone operations.
Deployment note: Final configuration, operator training, airspace approval, and local regulatory compliance are required before deployment.
