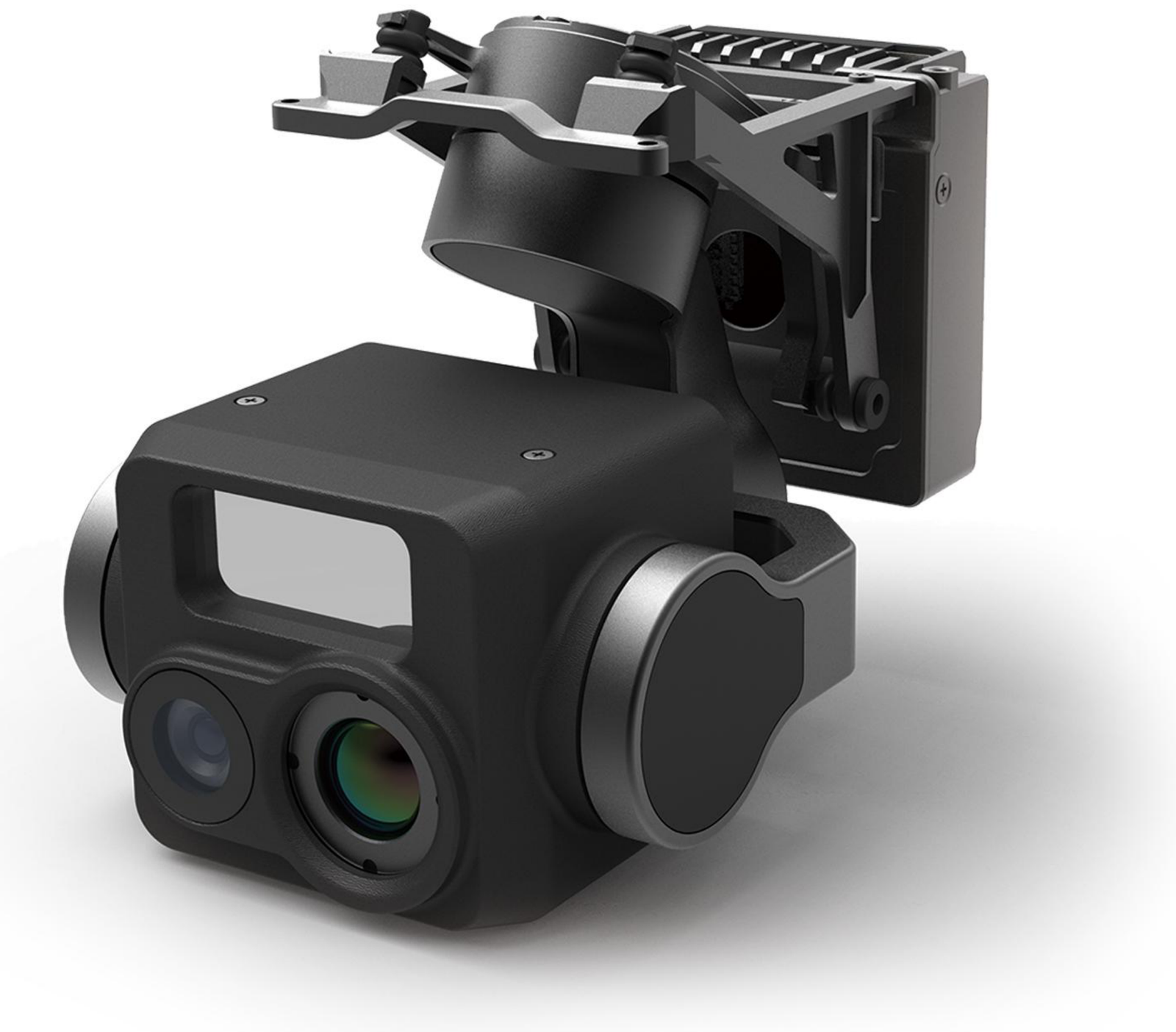

The 3TC is a powerful 3-axis gimbal micro pod with 6 TOPS AI computing, weighing only 180 g. It integrates a 48 MP visible-light camera, 640×512 infrared thermal imager, and 1.5 km laser rangefinder.
Key Capabilities
- 3-axis stabilized gimbal with ±0.005° drift angle
- 48 MP visible-light camera (SONY CMOS)
- 640×512 infrared thermal imager
- 1,500 m laser rangefinder
- 6 TOPS AI computing for multi-class recognition (person/vehicle/ship)
- Target tracking, fire investigation, face/license plate recognition
- Replaceable AI model conversion and deployment platform
- 4K/12M/48M photo resolution
Technical Specifications
| Operating voltage | 12–18V |
|---|---|
| Weight | 180 g |
| Operating temperature | -20 to 50°C |
| Control modes | UART / UDP / S.BUS / MAVLink 2.0 |
| Protection level | IP44 |
| Pan range | ±150° |
| Roll range | -45° to +45° |
| Tilt range | -140° to +50° |
| Drift angle | ±0.005° |
| Camera sensor | 1/2″ SONY CMOS, 48 MP |
| Infrared camera | 640 × 512 |
| Photo resolution | 4K / 12M / 48M |
| Video resolution | 4000 × 3000 @ 30fps |
| Laser rangefinder | 1,500 m |
| Built-in computing power | 6 TOPS |
| Tracking function | Supported |
| Local storage | 128 GB |
Applications
Edge-computing reconnaissance, multi-class target recognition and tracking, fire investigation, and customized AI model deployment for specialized missions.
Deployment note: Final configuration, operator training, airspace approval, and local regulatory compliance are required before deployment.
