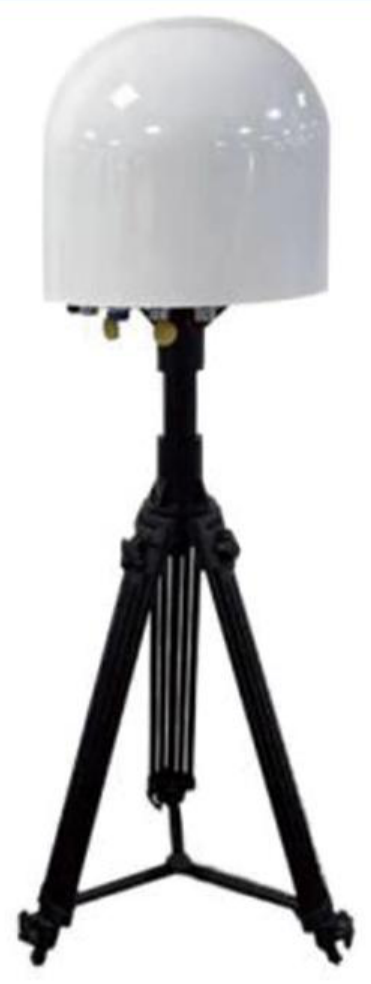

A portable drone detection device with 300 MHz to 6 GHz detection band, ≥30 multi-target identification, ≥95% detection success rate, and IP66 protection in a ≤10 kg package.
Key Capabilities
- 300 MHz – 6 GHz detection frequency band
- ≥30 sorties multi-target identification
- ≥95% detection success rate
- ≤2 second detection response time
- ≤3° lateral accuracy
- Unattended operation with black/white list management
- Trajectory playback and event logging
- 4G IoT / WiFi networking capability
- ≤50 W overall power consumption
- ≥6 hour battery life, IP66 protection, ≤10 kg weight
Technical Specifications
| Detection frequency band | 300 MHz – 6 GHz |
|---|---|
| Multi-target identification | ≥30 sorties |
| Detection success rate | ≥95% |
| Detection response time | ≤2 s |
| Lateral accuracy | ≤3° |
| Other functions | Unattended, black/white list, trajectory playback, event logging |
| Networking | 4G IoT / WiFi |
| Overall power consumption | ≤50 W |
| Operating temperature | -40°C to +70°C |
| Protection rating | IP66 |
| Battery life | ≥6 h |
| Product weight | ≤10 kg |
| Product dimensions | 430 × 345 × 188 ± 5 mm |
Applications
Portable drone detection, temporary airspace security, event protection, rapid-deployment counter-UAV reconnaissance, and mobile security operations.
Deployment note: Final configuration, operator training, airspace approval, and local regulatory compliance are required before deployment.
