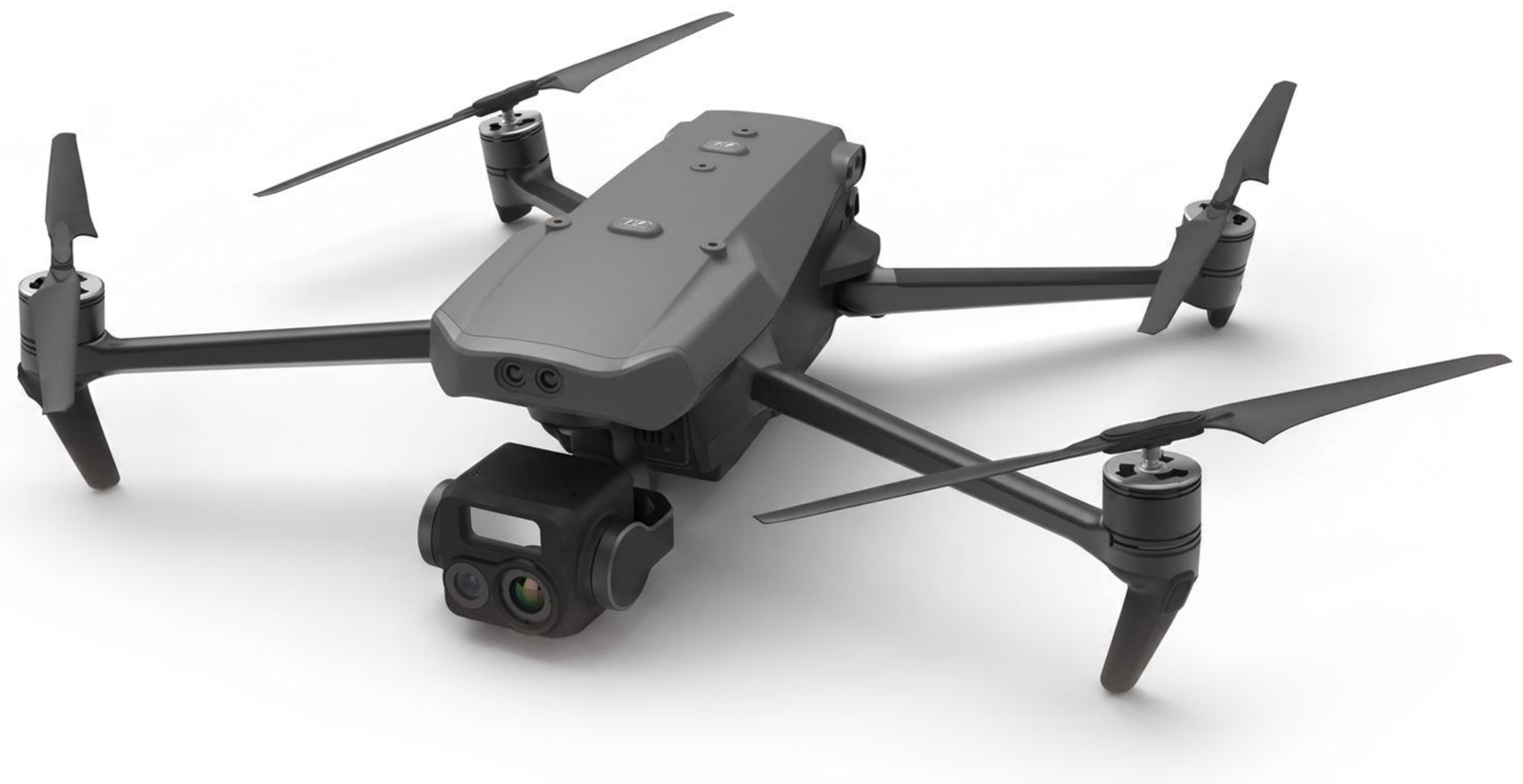

The Spear-3TC is a compact special-operations UAV equipped with a 48 MP visible-light camera, 640×512 thermal imager, and laser ranging for multi-sensor target acquisition.
Key Capabilities
- Up to 46 minutes flight time with 6,000 mAh battery
- 48 MP visible-light camera and 640×512 thermal imager
- Laser ranging within 5 to 1,500 meters
- AI automatic target recognition, tracking, and spatial-coordinate calculation
- Compact foldable airframe for portable carry
- Multi-band image transmission with interference adaptation
Technical Specifications
| Bare weight | ≈930 g |
|---|---|
| Max takeoff weight | ≈1,330 g |
| Max flight time (no wind) | 38 min (5,000 mAh) / 46 min (6,000 mAh) |
| Max hover time (no wind) | 31 min (5,000 mAh) / 40 min (6,000 mAh) |
| Max rotation angular velocity | 130°/s |
| Max level flight speed | 20 m/s |
| Max tilt angle | 30° |
| Max ascent speed | 6 m/s |
| Folded size | 222 × 97 × 91 mm |
| Unfolded size | 348 × 284 × 108 mm |
| GNSS | GPS + Galileo + BeiDou + GLONASS / Pure BeiDou |
| Image sensor | 1/2″, 48 MP |
| Thermal imaging resolution | 640 × 512 |
| Laser ranging range | 5–1,500 m |
| Ground station language | Chinese, English, Russian |
| Image transmission distance | 1.5–3 km / 3–6 km / 6–10 km |
Applications
Thermal reconnaissance, target acquisition and coordinate calculation, search-and-rescue in low-visibility conditions, and security surveillance.
Deployment note: Final configuration, operator training, airspace approval, and local regulatory compliance are required before deployment.
