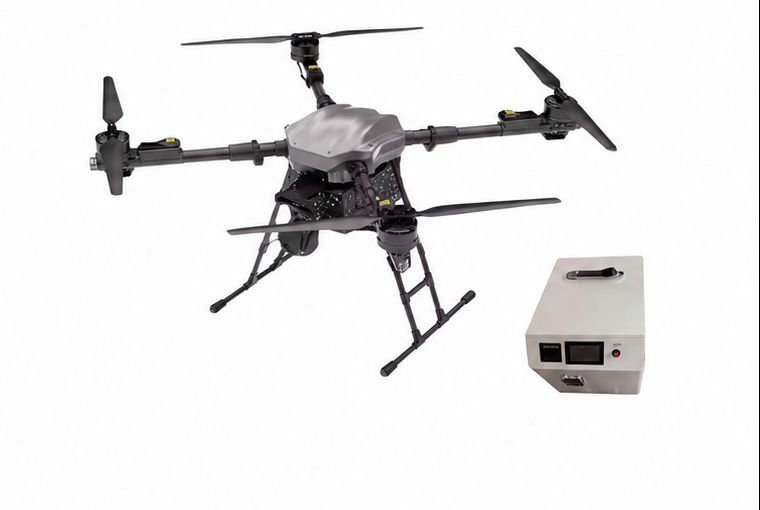

The Tethered Drone TK1500 is an extended-duration industrial UAV platform built for continuous tethered operations.
Key Capabilities
- Tethered endurance of 24 hours or more
- Up to 100 m cable length
- Multi-constellation GNSS support
- IP55 protection level
Technical Specifications
| Unfolded dimensions | Up to 1,400 x 1,400 x 800 mm |
|---|---|
| Maximum flight endurance | 60 minutes or more |
| Tethered flight endurance | 24 hours or more |
| GNSS | GPS, BDS, Galileo and GLONASS |
| Protection rating | IP55 |
| Operating temperature | -20 C to 55 C |
| Maximum horizontal speed | 15 m/s |
| Maximum climb / descent speed | 10 m/s / 3 m/s |
| Flight altitude | 4,000 m |
| Cable length | 100 m |
Industrial Applications
Persistent civil observation, illumination, communications relay, and other industrial operations that require extended-duration aerial coverage.
Deployment note: Final configuration, operator training, airspace approval, and local regulatory compliance are required before deployment.
