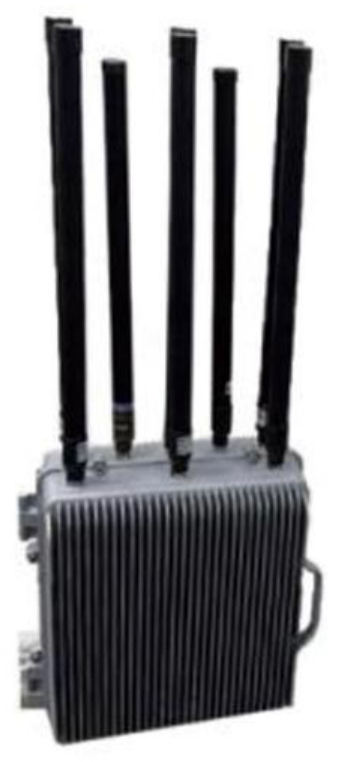

A vehicle-mounted FPV jamming system with 70 MHz to 6 GHz full-band scanning, ≥10 km detection range, and multi-band jamming with ≤±3° direction finding accuracy.
Key Capabilities
- 70 MHz – 6 GHz full-band scanning, detection and display
- Key detection: 800 MHz, 900 MHz, 1.2 GHz, 1.4 GHz, 2.4 GHz, 5.2 GHz, 5.8 GHz
- ≥10 km detection range
- 500 MHz – 6 GHz FPV video link full-band scanning
- ≥1.5 km FPV video link detection range
- 360° azimuth, 90° elevation coverage
- ≥1–3 km deception radius
- ≤±3° RMS direction finding accuracy
- -40°C to +60°C operating temperature
Technical Specifications
| Detection frequency band | 70 MHz – 6 GHz full-band |
|---|---|
| Key detection bands | 800 MHz, 900 MHz, 1.2 GHz, 1.4 GHz, 2.4 GHz, 5.2 GHz, 5.8 GHz |
| Detection range | ≥10 km |
| FPV video link detection | 500 MHz – 6 GHz full-band |
| Video link detection range | ≥1.5 km |
| Azimuth coverage | 360° horizontal, 90° elevation |
| Deception radius | ≥1–3 km |
| Direction finding accuracy | ≤±3° RMS |
| Operating temperature | -40°C to +60°C |
Applications
Vehicle-mounted FPV counter-drone operations, mobile security patrols, event protection, and comprehensive low-altitude defense.
Deployment note: Final configuration, operator training, airspace approval, and local regulatory compliance are required before deployment.
