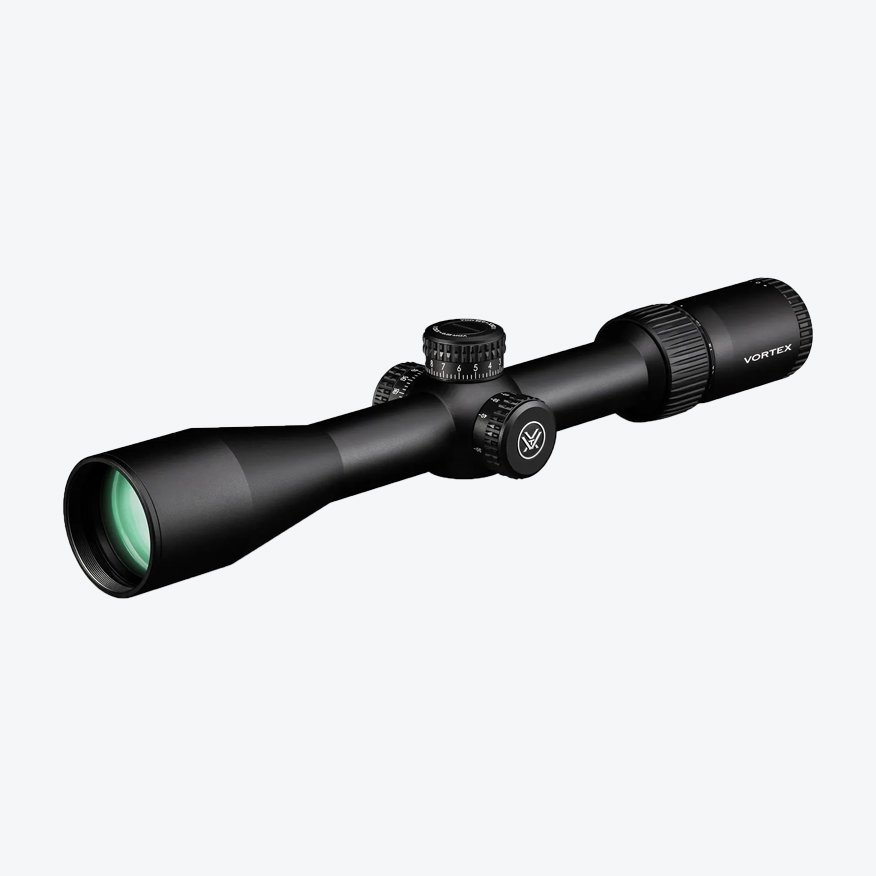

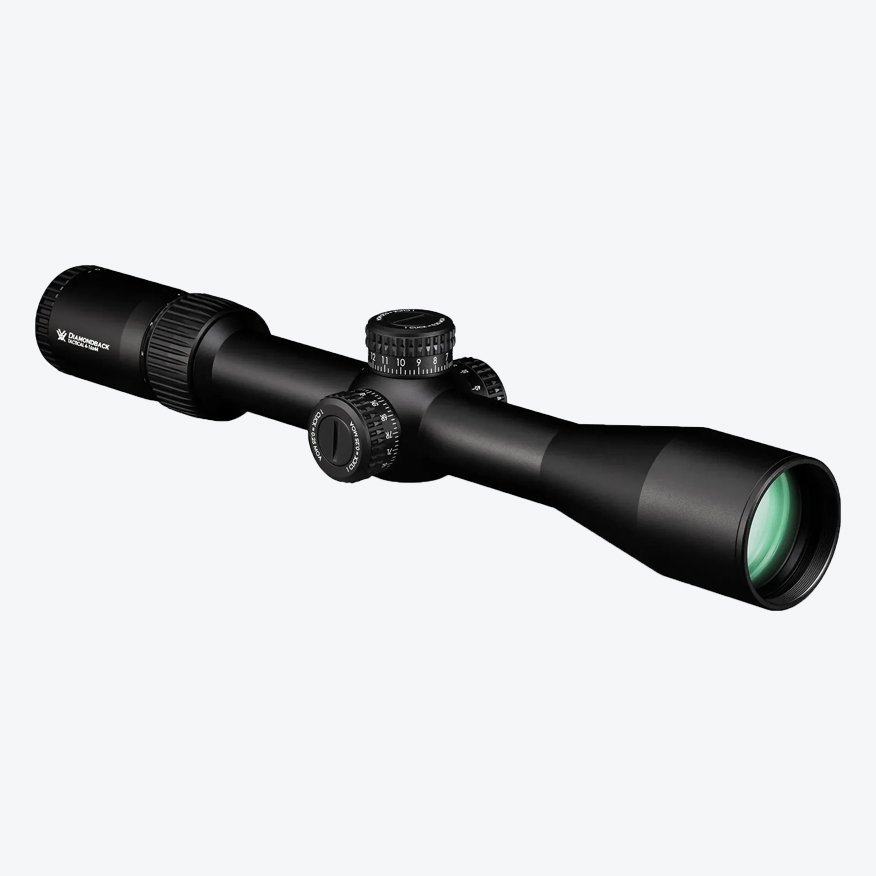

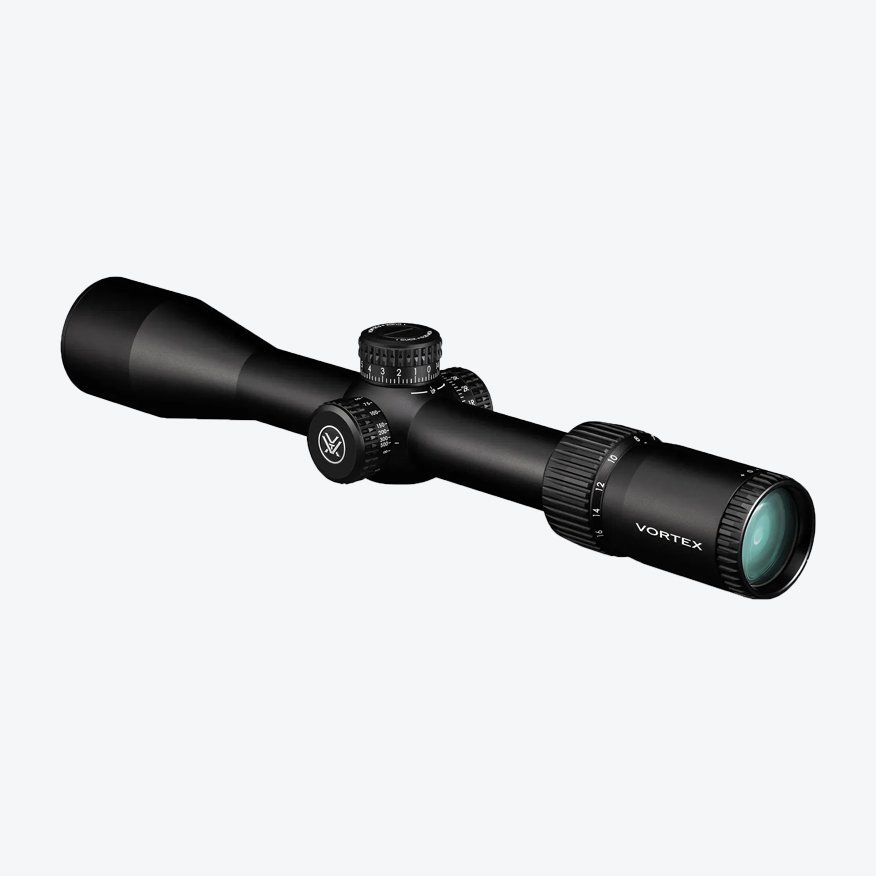

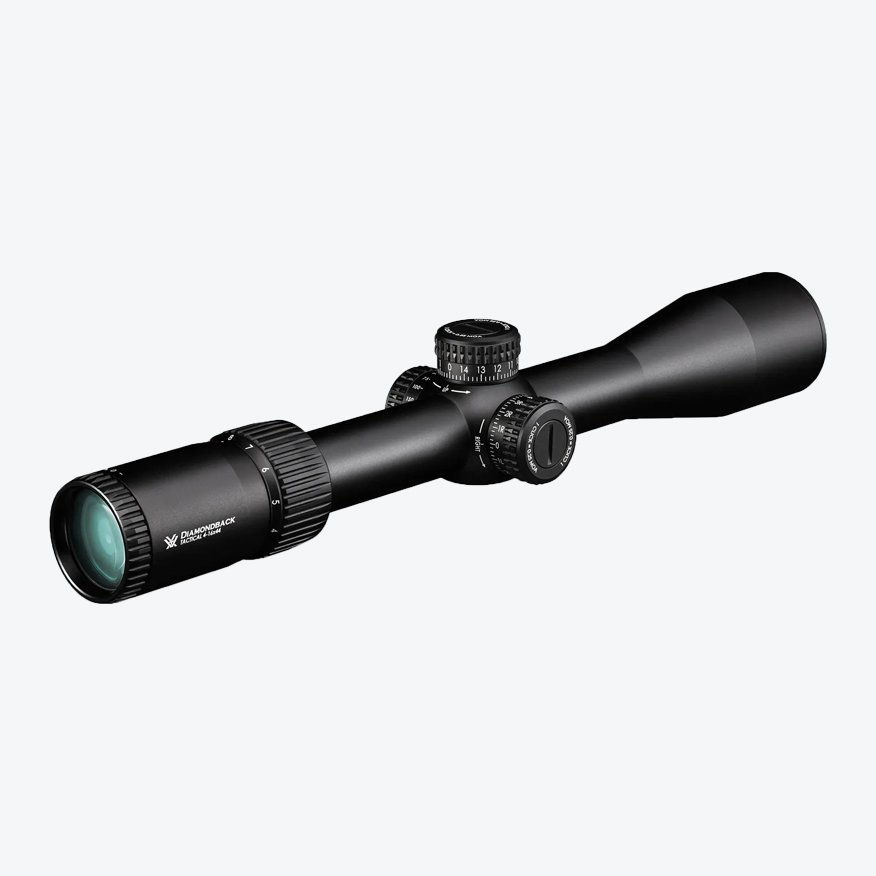

Vortex DIAMONDBACK® Tactical 4-16×44 FFP EBR-2C MRAD Non IR

Overview

Diamondback^® Tactical brings the hardworking legacy of the Diamondback^® name into the tactical world, delivering trusted performance for shooters looking to extend their effective range. With solid construction and sharp, clear glass, it keeps you focused whether dialing in for mid-range shots or stretching out to 1,000 yards. Meant for new shooters seeking confidence in their windage and elevation adjustments. It’s tough enough to withstand hard use while delivering tack-driving accuracy, shot after shot.

Diamondback Tactical 4-16×44 FFP Dimensions (in inches)

Lengths
L1	L2	L3	L4	L5	L6
14.06	2.24	2.7	6.43	3.83	3.77

Heights
H1	H2
2.01	1.73

Specifications

Magnification	4-16x
Objective Lens Diameter	44 mm
Focal Plane	First Focal Plane
Reticle	EBR-2C (MRAD)
Eye Relief	3.8″
Field of View	26.9′ – 6.7 ‘ @ 100 yds
Turret Style	Exposed
Tube Size	30mm
Adjustment Graduation	.1 MRAD
Travel Per Rotation	6 MRAD
Max Elevation Adjustment	25 MRAD
Max Windage Adjustment	25 MRAD
Parallax Setting	20 yds. – ∞
Length	14.1″
Weight	23.1 oz

Features

XD™ Optical System	Premium optical system delivers impressive resolution, edge-to-edge sharpness, greatly reduces chromatic aberration, and guarantees bright, high-contrast images.
Fully Multi-Coated Lenses	Anti-reflective coatings on all air-to-glass surfaces provide increased light transmission for greater clarity and low-light performance.
First Focal Plane Reticle	A first focal plane reticle is located within the riflescope near the windage and elevation turrets. The scale of reticle remains in proportion to the zoomed image. Constant subtensions allow accurate holdover and ranging at all magnifications. The reticle’s size will appear larger at high magnifications and smaller at low magnification.
Nitrogen Gas Purged	Gas purged and O-ring sealed for fogproof and waterproof performance in all conditions.
Fast-Focus Eyepiece	Allows for quick and easy reticle focusing.
Aircraft Grade Aluminum	Constructed from a solid block of aircraft-grade aluminum for strength and rigidity.
Low-Glare Matte Black Anodize	Corrosion and wear resistant anodization provides low-glare matte surface and helps camouflage the shooter’s position.
Waterproof	Designed to withstand harsh weather conditions.
Fogproof	Designed to withstand a wide range of temperatures.
Shockproof	Designed to withstand the highest levels of recoil and impact.

Reticle

EBR-2C (MRAD)Hash-marked ranging reticle using MRAD based subtension lines for ranging, holdover, and windage corrections. Letters refer to reticle subtensions listed in chart below.
