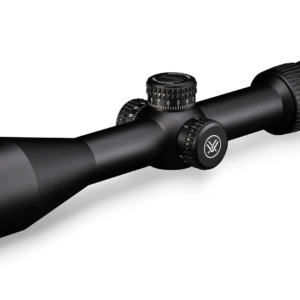

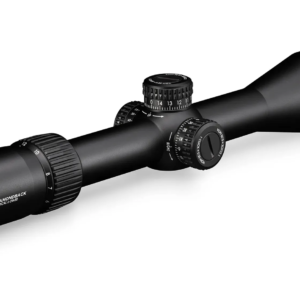

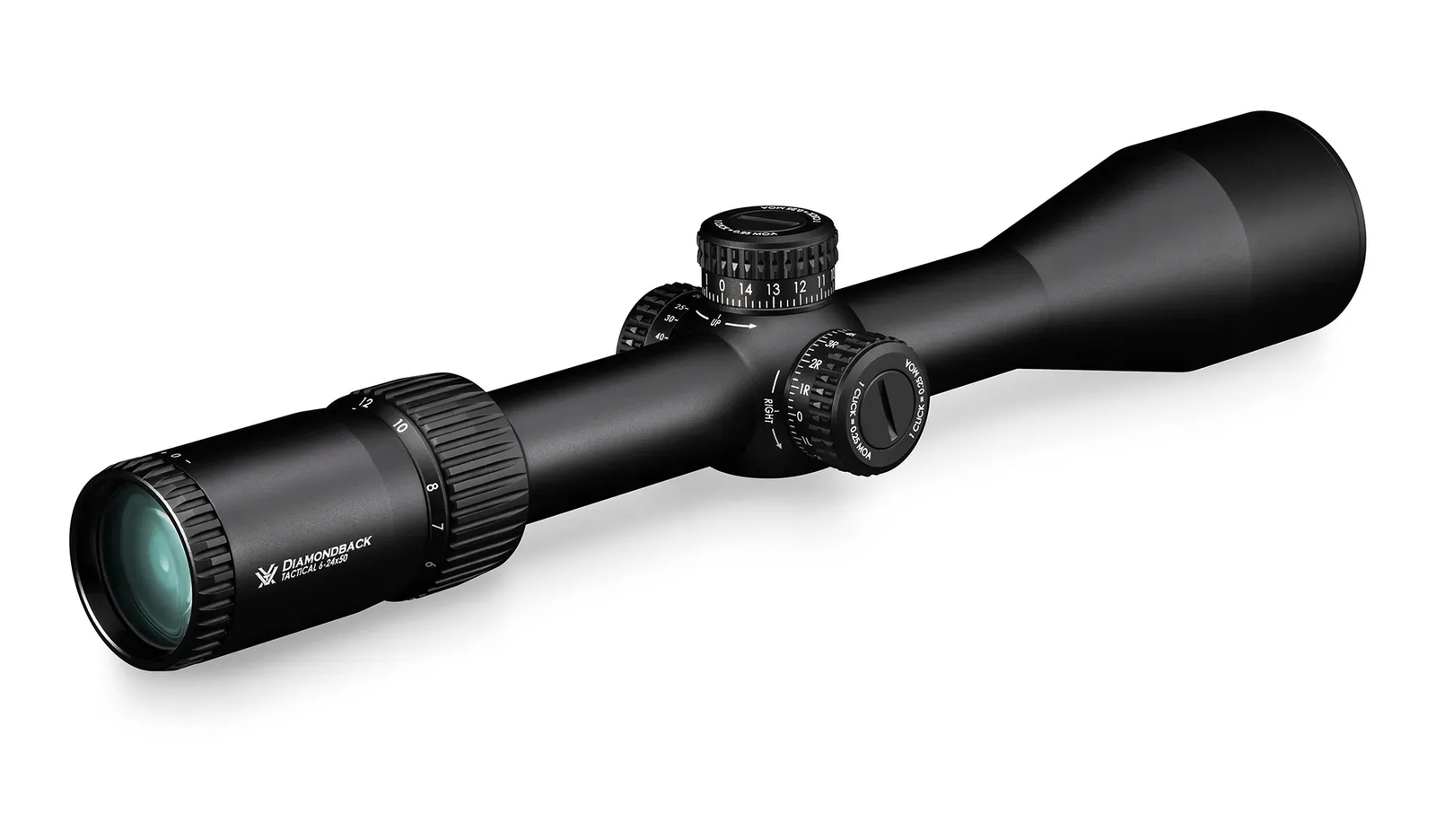

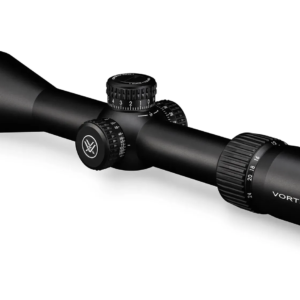

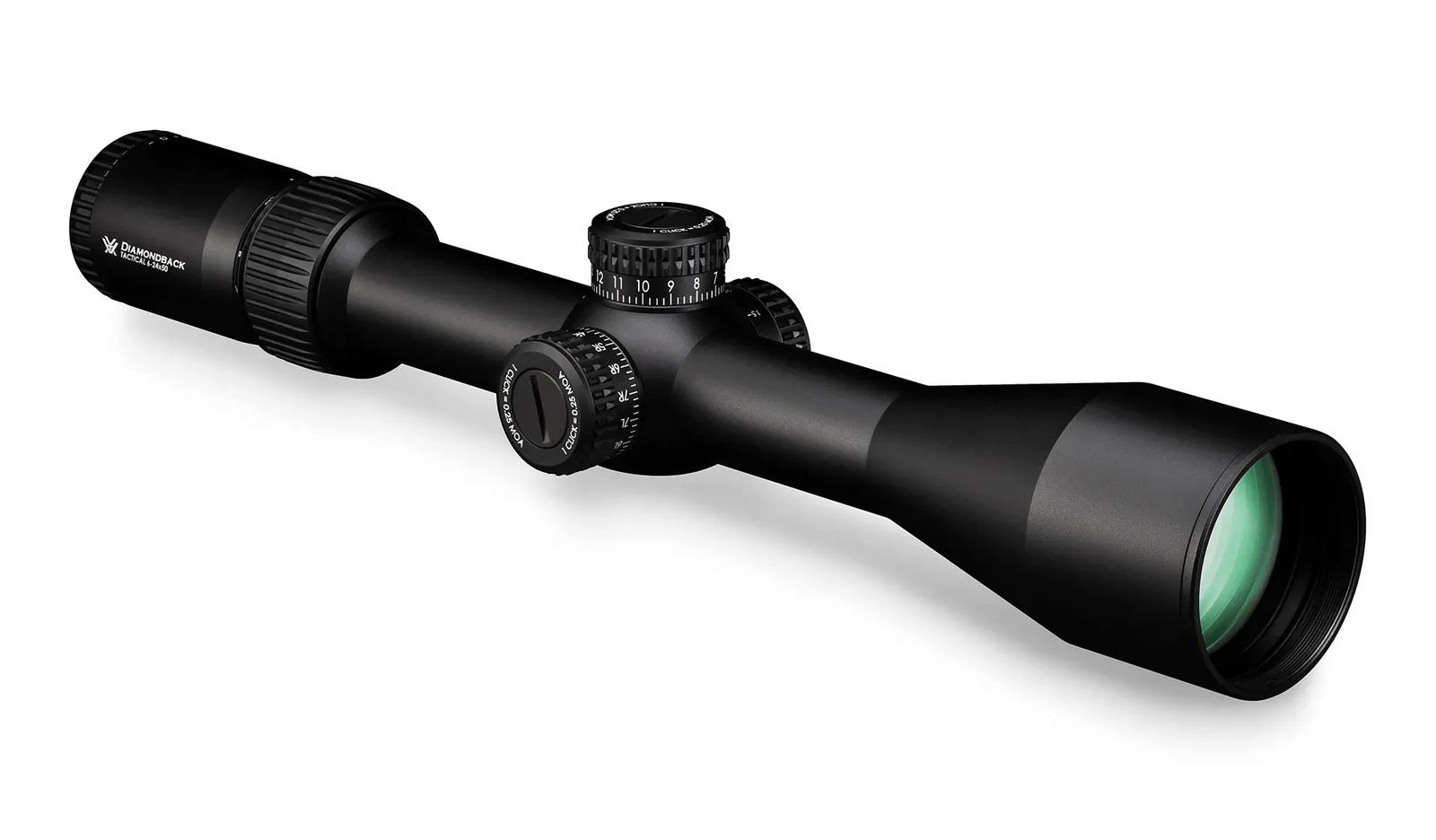

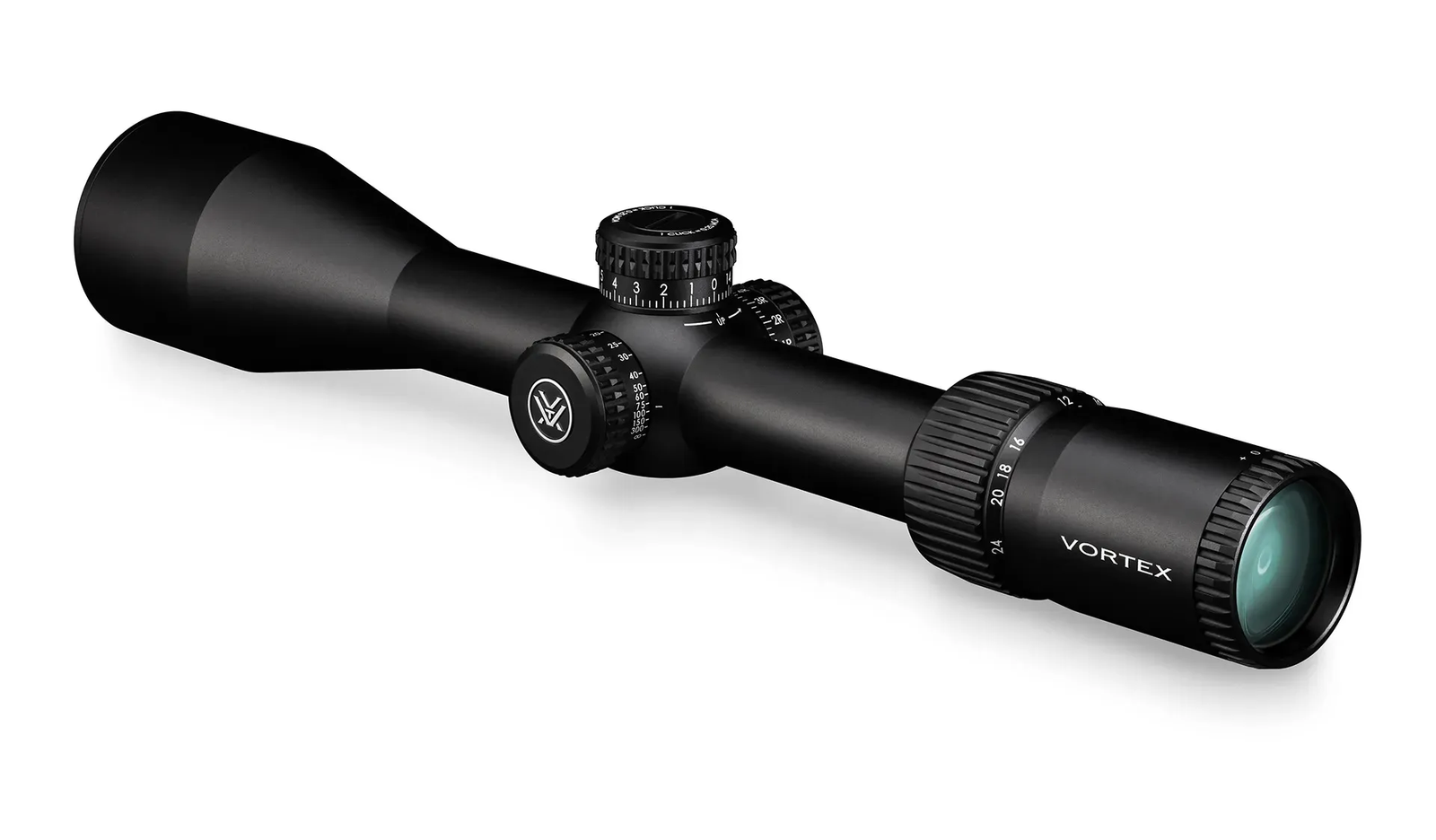

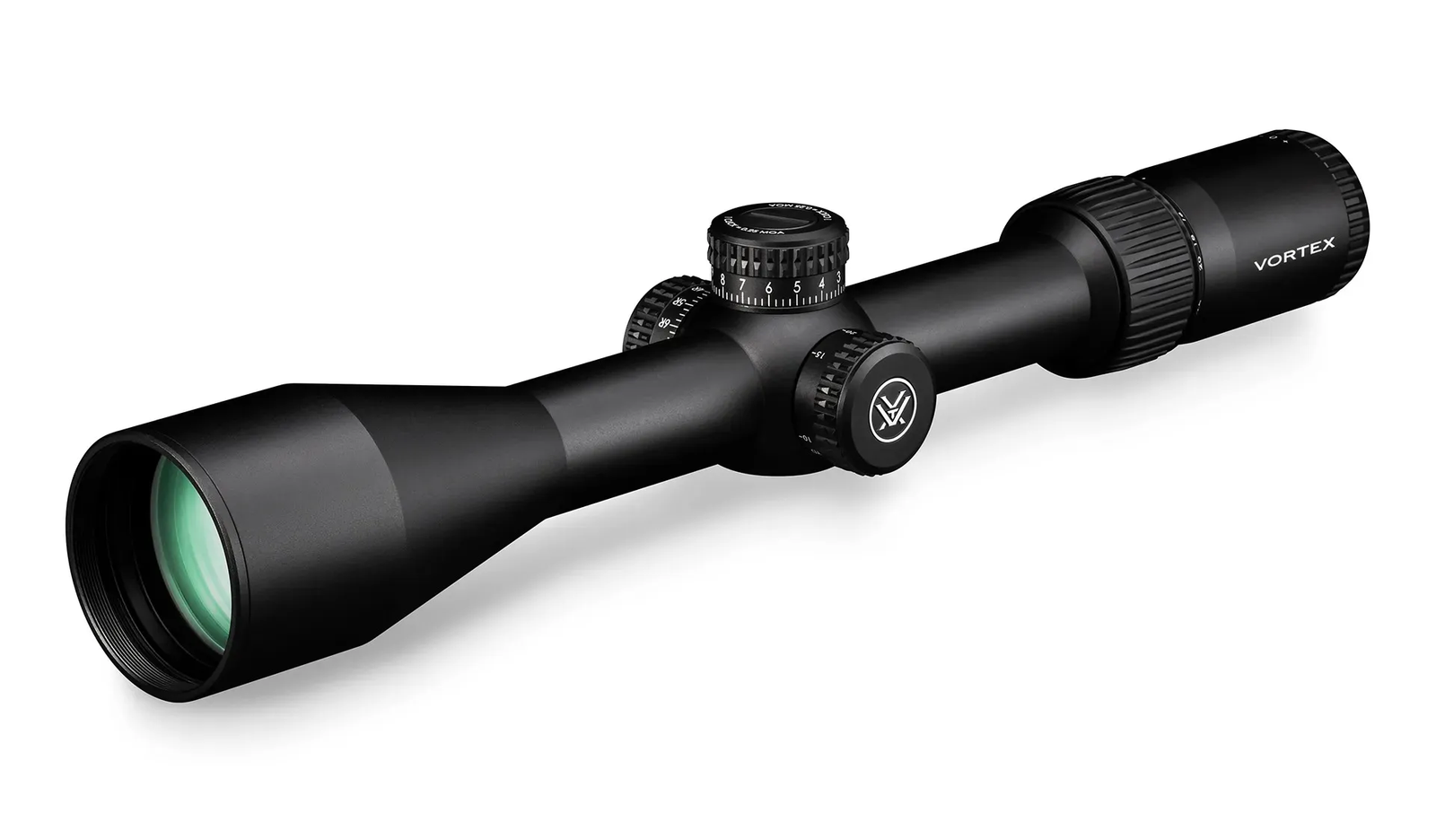

Vortex Diamondback Tactical 6-24×50 FFP MRAD Overview
The Vortex Diamondback Tactical 6-24×50 FFP EBR-2C MRAD gives precision-minded shooters a wide magnification range and a first focal plane reticle for range work and long-distance practice.
Why choose this optic
- 6-24× magnification fits target shooting and longer-range load development
- EBR-2C MRAD reticle supports measured holds and corrections
- 50mm objective and tactical feature set suit practical precision builds
Best fit
Choose this model if you want more top-end magnification than the 4-16× version and prefer MRAD-based adjustments. Always confirm ring height, base compatibility, eye relief, and reticle preference before ordering.
Technical specifications
| Lengths |
|---|
| L1 | L2 | L3 | L4 | L5 | L6 |
| 14.28 | 2.30 | 2.70 | 6.56 | 3.98 | 3.77 |
| Magnification | 6-24x |
|---|
| Objective Lens Diameter | 50 mm |
|---|
| Focal Plane | First Focal Plane |
|---|
| Reticle | EBR-2C (MOA) |
|---|
| Eye Relief | 3.9 “ |
|---|
| Field of View | 18.0′ – 4.5′ @ 100 yds |
|---|
| Turret Style | Exposed |
|---|
| Tube Size | 30mm |
|---|
| Adjustment Graduation | 1/4 MOA |
|---|
| Travel Per Rotation | 15 MOA |
|---|
| Max Elevation Adjustment | 65 MOA |
|---|
| Max Windage Adjustment | 65 MOA |
|---|
| Parallax Setting | 10 yds. – ∞ |
|---|
| Length | 14.3″ |
|---|
| Weight | 24.6 oz |
|---|
| XD™ Optical System | Premium optical system delivers impressive resolution, edge-to-edge sharpness, greatly reduces chromatic aberration, and guarantees bright, high-contrast images. |
|---|
| Fully Multi-Coated Lenses | Anti-reflective coatings on all air-to-glass surfaces provide increased light transmission for greater clarity and low-light performance. |
|---|

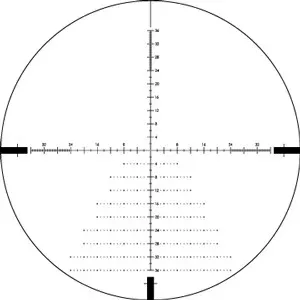

| First Focal Plane Reticle | A first focal plane reticle is located within the riflescope near the windage and elevation turrets. The scale of reticle remains in proportion to the zoomed image. Constant subtensions allow accurate holdover and ranging at all magnifications. The reticle’s size will appear larger at high magnifications and smaller at low magnification. |
|---|
| Nitrogen Gas Purged | Gas purged and O-ring sealed for fogproof and waterproof performance in all conditions. |
|---|
| Fast-Focus Eyepiece | Allows for quick and easy reticle focusing. |
|---|
| Aircraft Grade Aluminum | Constructed from a solid block of aircraft-grade aluminum for strength and rigidity. |
|---|
| Low-Glare Matte Black Anodize | Corrosion and wear resistant anodization provides low-glare matte surface and helps camouflage the shooter’s position. |
|---|
| Waterproof | Designed to withstand harsh weather conditions. |
|---|
| Fogproof | Designed to withstand a wide range of temperatures. |
|---|
| Shockproof | Designed to withstand the highest levels of recoil and impact. |
|---|
