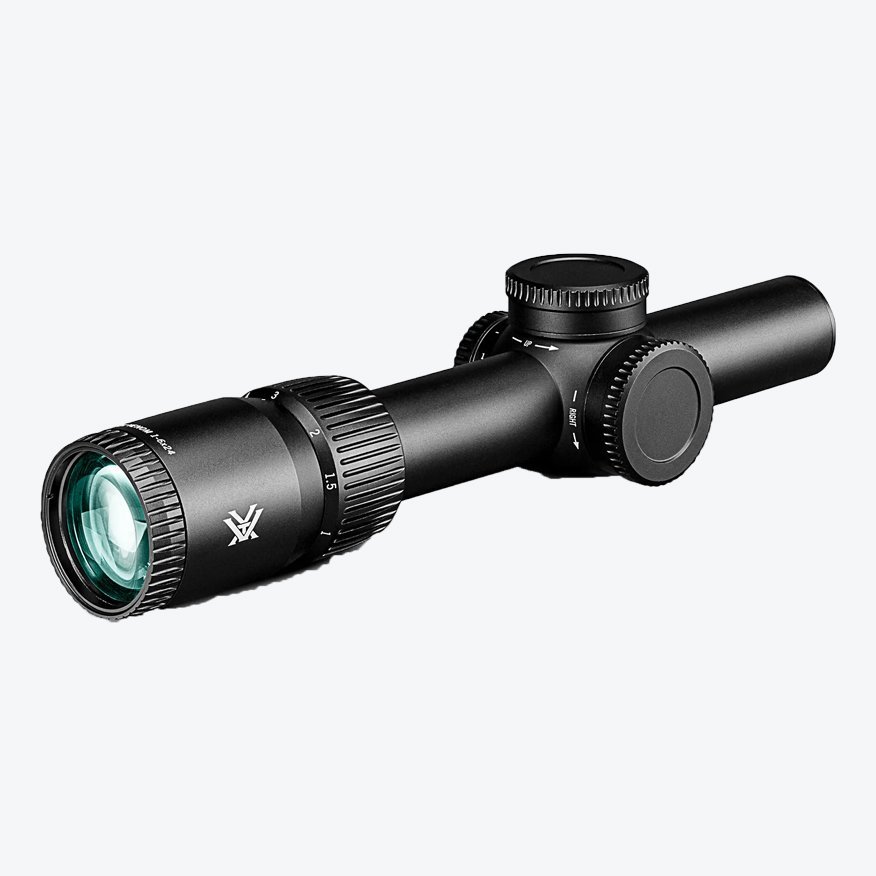

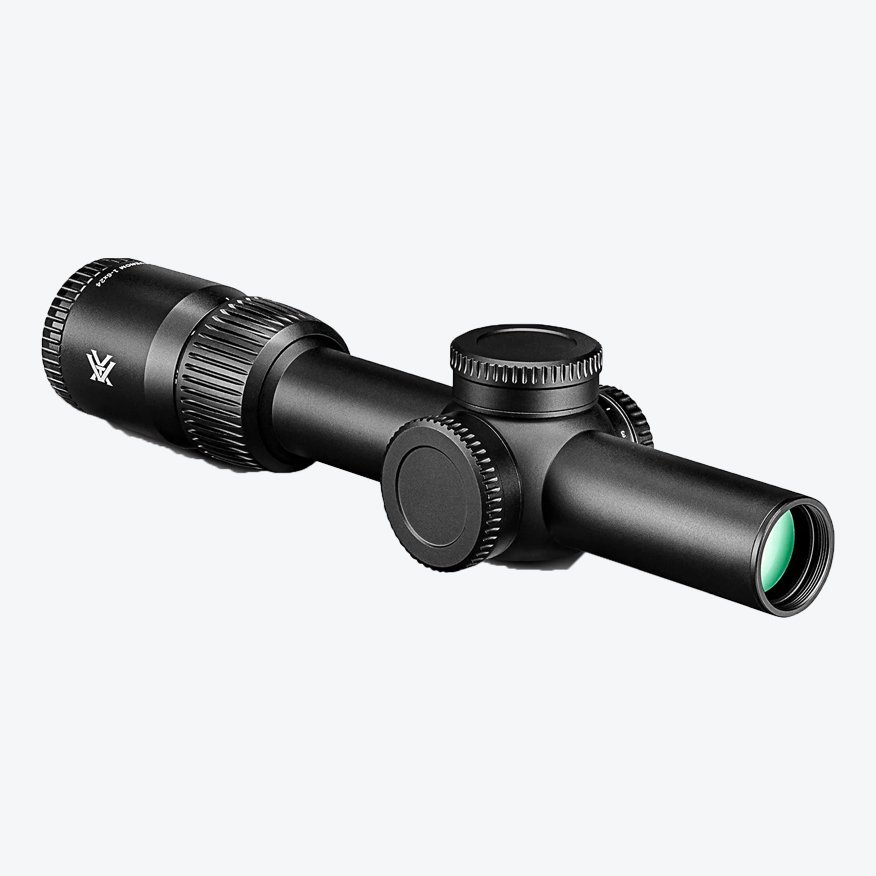

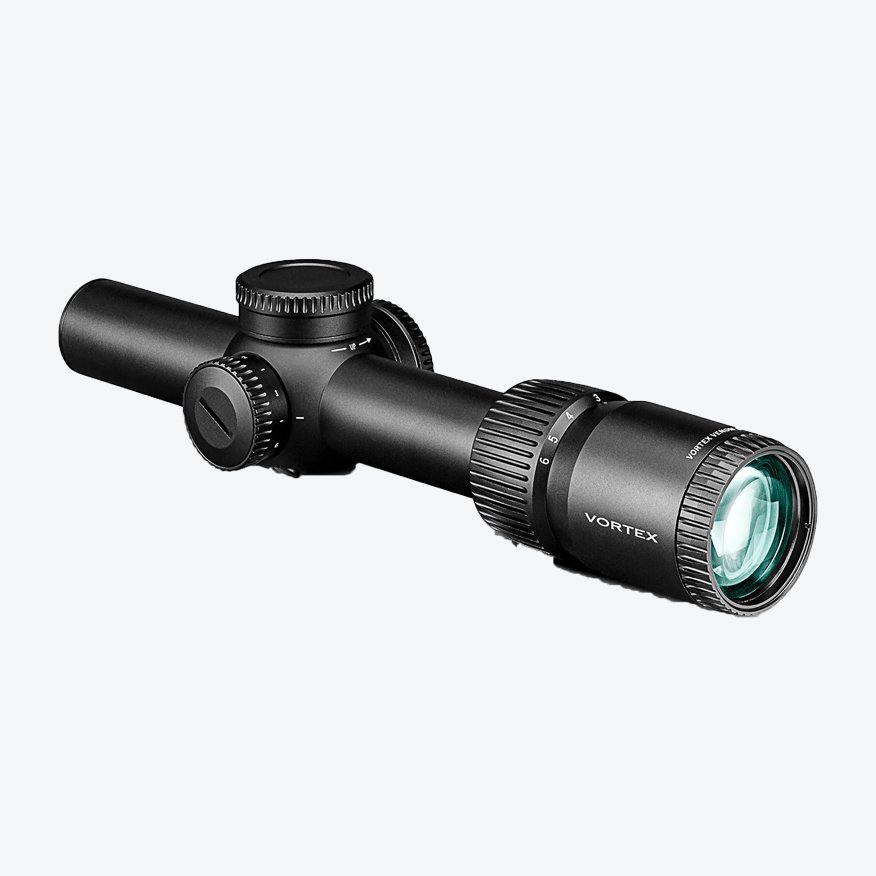

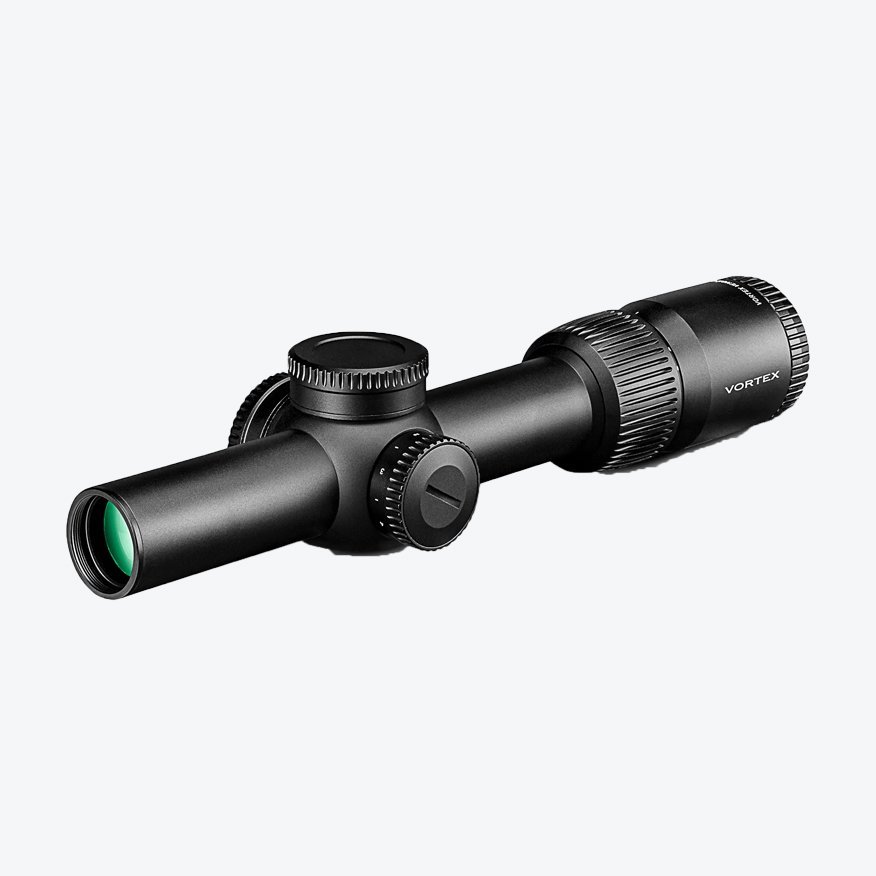

Vortex Venom 1-6×24 IR MOA Overview
The Vortex Venom 1-6×24 IR MOA is a low-power variable optic for shooters who want quick 1× handling with enough magnification for controlled mid-range shots.
Why choose this optic
- 1-6× magnification range is well suited to carbine and general-purpose rifle setups
- Illuminated MOA reticle helps with fast target pickup
- LPVO format gives more flexibility than a fixed red dot while staying compact
Best fit
Choose this Venom if you want a straightforward illuminated LPVO for range practice, defensive training, or a versatile AR-style build. Always confirm ring height, base compatibility, eye relief, and reticle preference before ordering.
Technical specifications
| Lengths |
| L1 |
L2 |
L3 |
L4 |
| 10.3 |
2.8 |
2.3 |
6.7 |
| Magnification |
1-6x |
| Objective Lens Diameter |
24 mm |
| Focal Plane |
Second Focal Plane |
| Reticle |
AR-BDC3 |
| Eye Relief |
3.7″ |
| Field of View |
126.0′ – 20.2′ @ 100 yds |
| Turret Style |
Capped |
| Tube Size |
30mm |
| Adjustment Graduation |
1/4 MOA |
| Travel Per Rotation |
25 MOA |
| Max Elevation Adjustment |
140 MOA |
| Max Windage Adjustment |
140 MOA |
| Parallax Setting |
100 yds. |
| Length |
10.3″ |
| Weight |
19.5 oz |
| XD™ Optical System |
Premium optical system delivers impressive resolution, edge-to-edge sharpness, greatly reduces chromatic aberration, and guarantees bright, high-contrast images. |
| Fully Multi-Coated Lenses |
Anti-reflective coatings on all air-to-glass surfaces provide increased light transmission for greater clarity and low-light performance. |
| Illuminated Reticle |
Provides precise aiming under low-light conditions. |
| Single-Piece Tube |
Maximizes alignment for improved accuracy and optimum visual performance, as well as ensures strength and waterproofness. |
| Nitrogen Gas Purged |
Gas purged and O-ring sealed for fogproof and waterproof performance in all conditions. |
| Fast-Focus Eyepiece |
Allows for quick and easy reticle focusing. |
| Throw Lever |
The included throw lever can be installed for quick and easy magnification adjustments. |
| Aircraft Grade Aluminum |
Constructed from a solid block of aircraft-grade aluminum for strength and rigidity. |
| ArmorTek® |
Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt. |
| Low Glare Matte Black Anodize |
Corrosion and wear resistant anodization provides low-glare matte surface and helps camouflage the shooter’s position. |
| Waterproof |
Designed to withstand harsh weather conditions. |
| Shockproof |
Designed to withstand the highest levels of recoil and impact. |
| Fogproof |
Designed to withstand a wide range of temperatures. |
