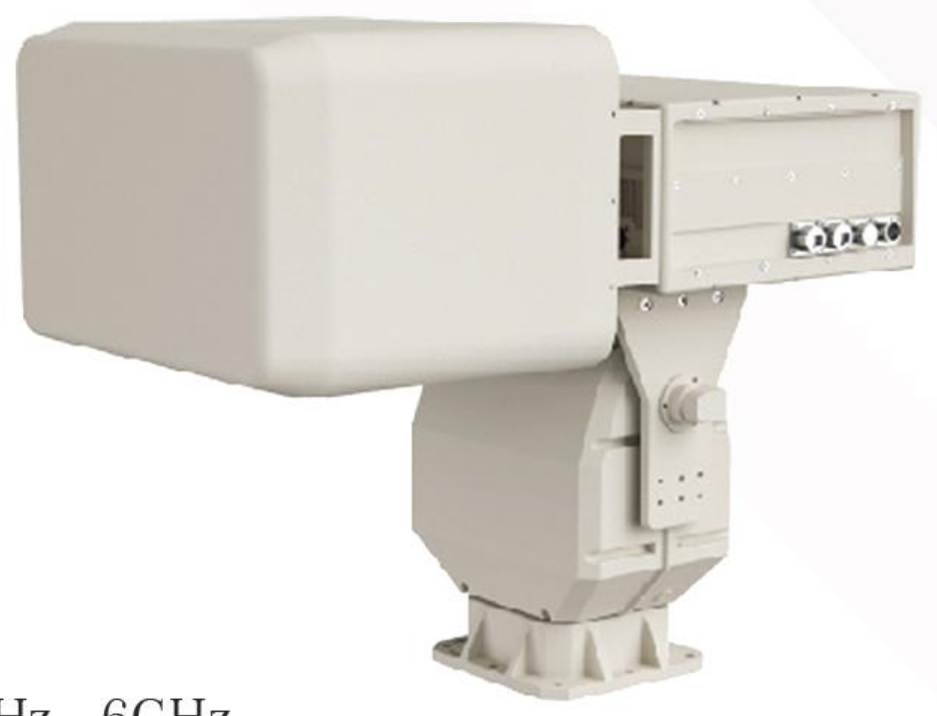

A directional jamming system with 300 MHz to 6 GHz jamming band, 5 km range, multi-signal navigation deception, and 360° azimuth coverage for comprehensive counter-UAV operations.
Key Capabilities
- 300 MHz – 6 GHz jamming frequency band
- 5 km jamming range
- Directional jamming with ≥12° beamwidth
- 360° azimuth, -10° to 90° elevation operating angle
- Navigation jamming, directional diversion, and no-fly zone restriction
- GPS, GLONASS, BDS, Galileo deception signal support
- 5 km deception range with <3 s intrusion time
- 0.1°–20°/s azimuth, 0.1°–5°/s elevation rotation speed
- ≤1,500 W power consumption at full output
Technical Specifications
| Jamming frequency band | 300 MHz – 6 GHz |
|---|---|
| Jamming range | 5 km |
| Jamming method | Directional |
| Jamming beamwidth | ≥12° |
| Operating angle | 360° azimuth, -10° to 90° elevation |
| Deception pattern | Navigation jamming, directional diversion, no-fly zone |
| Deception signal type | GPS, GLONASS, BDS, Galileo |
| Deception range | 5 km |
| Intrusion time | ≤3 s |
| Rotation speed | Azimuth 0.1°–20°/s, elevation 0.1°–5°/s |
| Device power consumption | ≤1,500 W (full power) |
| Power supply | 220V |
| Operating temperature | -20°C to +70°C |
| Protection level | IP65 |
| Product weight | ≤55 kg |
Applications
Directional counter-drone jamming, critical facility protection, no-fly zone enforcement, and integrated airspace defense with navigation deception.
Deployment note: Final configuration, operator training, airspace approval, and local regulatory compliance are required before deployment.
