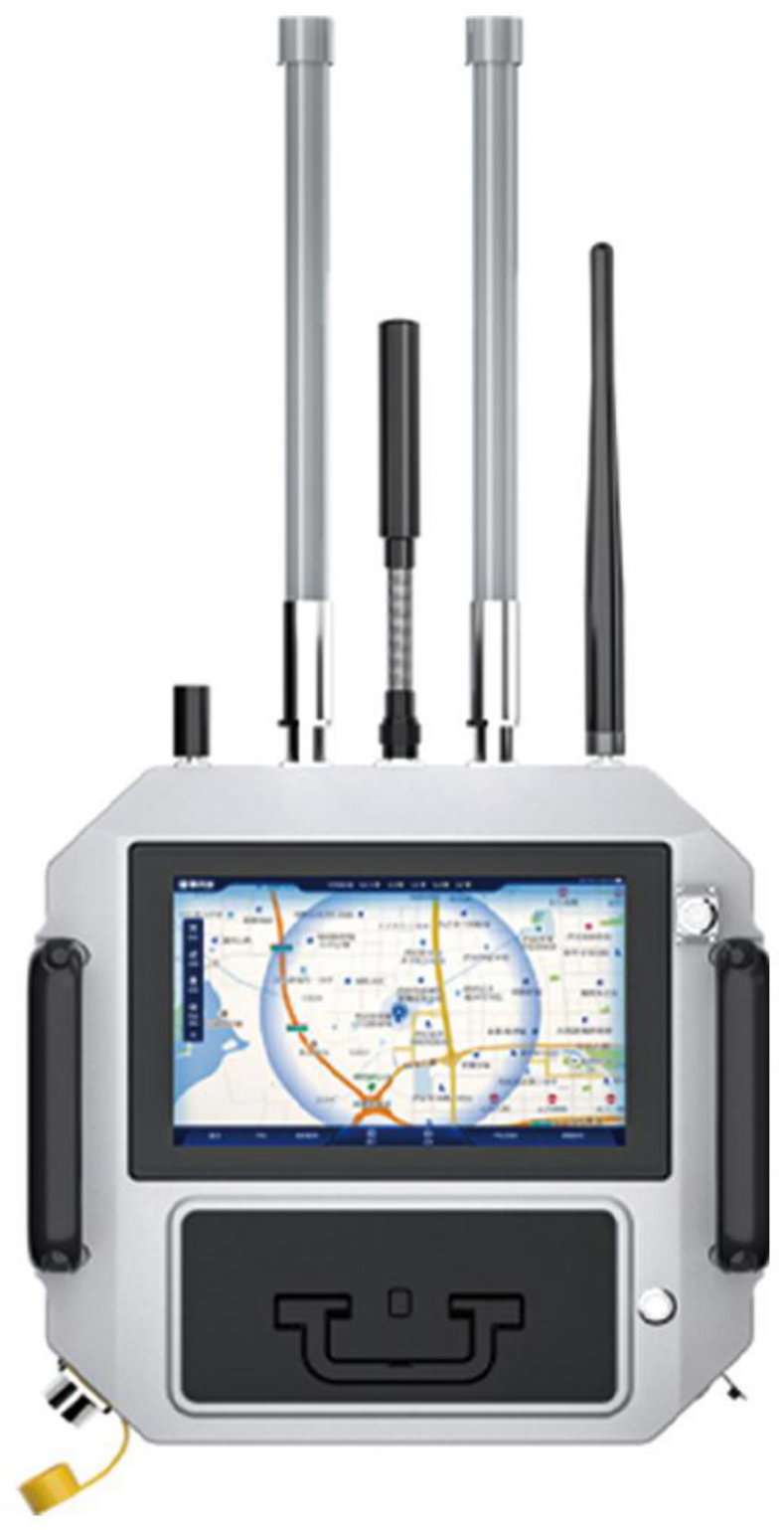

A wearable drone jamming backpack with 600 MHz to 6 GHz detection, 3 km detection range, multi-band jamming, and rugged 8-inch tablet display in a ≤13 kg package.
Key Capabilities
- 600 MHz – 6 GHz detection with message parsing and digital image transmission
- 3 km detection range
- Fixed-frequency jamming: 2.4, 5.2, 5.8 GHz (customizable)
- Wideband jamming: 300 MHz – 6 GHz (customizable)
- 1-2 km jamming range
- Rugged tablet with ≥8 inch screen
- ≥6 hour continuous detection, ≥30 min continuous jamming
- ≤600 W power consumption, ≤13 kg weight
Technical Specifications
| Detection frequency band | 600 MHz – 6 GHz |
|---|---|
| Detection mode | Message parsing / digital image transmission / analog / digital remote |
| Detection range | 3 km |
| Jamming frequency band | Fixed: 2.4/5.2/5.8 GHz; Wideband: 300 MHz – 6 GHz (customizable) |
| Jamming range | 1–2 km |
| Screen | Rugged tablet, ≥8 inches |
| Overall power consumption | ≤600 W |
| Battery life | ≥6 h detection, ≥30 min jamming |
| Operating temperature | -20°C to +60°C |
| Protection level | IPx5 |
| Product weight | ≤13 kg |
Applications
Wearable counter-drone operations, mobile security patrols, infantry counter-UAV, and rapid-deployment airspace defense.
Deployment note: Final configuration, operator training, airspace approval, and local regulatory compliance are required before deployment.
