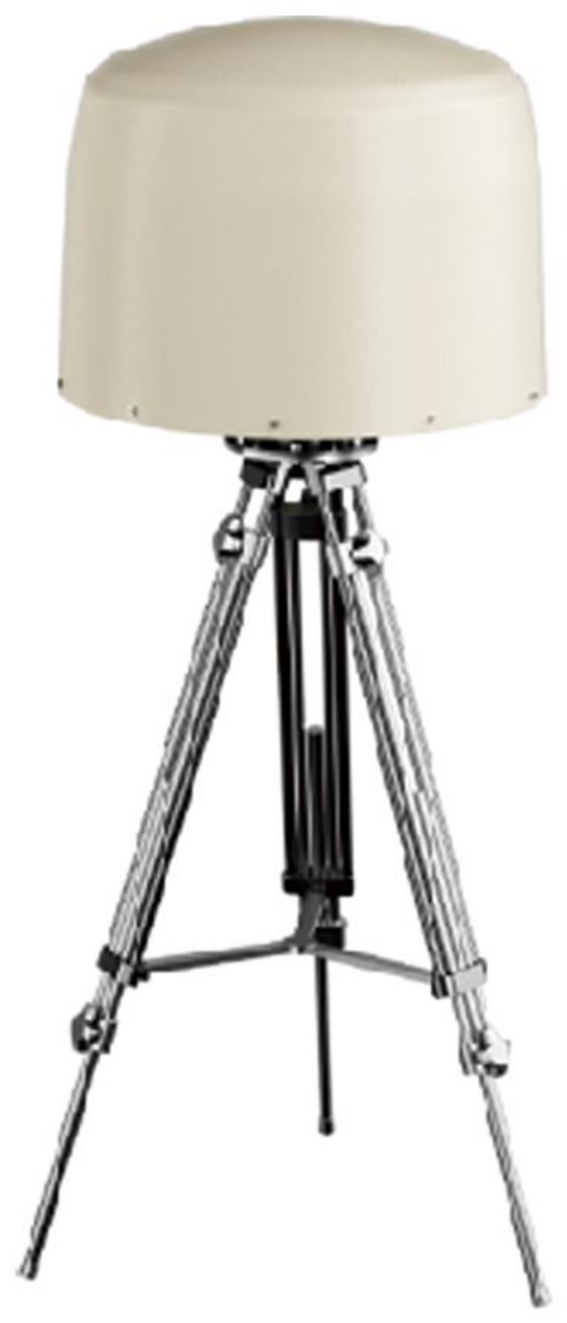

An X-band low-altitude detection radar with >5 km detection range for small UAVs (RCS ≤0.01 m²), 360° azimuth coverage, and tracking/TAS functionality.
Key Capabilities
- X-band frequency operation
- >5 km detection range for UAVs with RCS ≤0.01 m²
- ≤200 m blind zone
- 360° azimuth, 0°–30° elevation angular coverage
- Tracking and TAS (Track-While-Scan) functionality
- 1 m/s to 100 m/s velocity measurement range
- ≤10 m range accuracy, ≤0.6° azimuth/elevation (scanning)
- ≤0.4° azimuth/elevation (tracking)
- ≤3 s target update rate (configurable)
- Ethernet interface
Technical Specifications
| Frequency band | X-band |
|---|---|
| Detection range | >5 km (UAV, RCS ≤0.01 m²) |
| Blind zone | ≤200 m |
| Angular coverage | Azimuth 0°–360°, elevation 0°–30° |
| Tracking function | Tracking and TAS |
| Velocity measurement range | 1 m/s – 100 m/s |
| Accuracy (scanning) | Range ≤10 m, azimuth/elevation ≤0.6° |
| Accuracy (tracking) | Azimuth/elevation ≤0.4° |
| Target update rate | ≤3 s (configurable) |
| Interface | Ethernet |
| Overall power consumption | ≤400 W |
| Operating temperature | -40°C to +60°C |
| Protection level | IP66 |
| Product weight | ≤28 kg |
| Product dimensions | 536 × 300 × 230 mm |
Applications
Low-altitude airspace monitoring, drone detection and tracking, airport perimeter security, and integration with counter-UAV command systems.
Deployment note: Final configuration, operator training, airspace approval, and local regulatory compliance are required before deployment.
