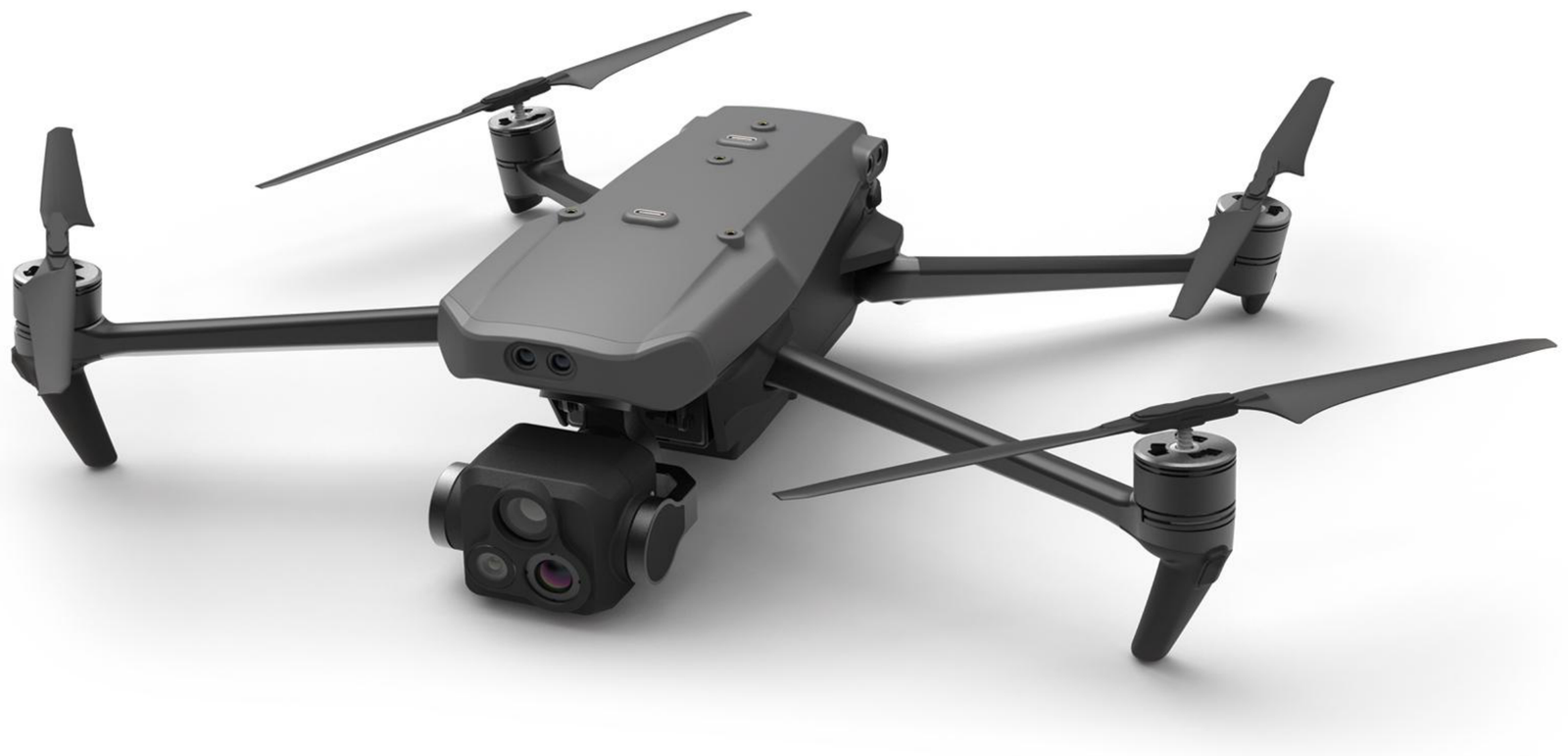

The Spear-3T is a compact special-operations UAV featuring wide-angle and telephoto 48 MP cameras with 640×512 thermal imaging for versatile multi-sensor reconnaissance.
Key Capabilities
- Up to 46 minutes flight time with 6,000 mAh battery
- Dual 48 MP cameras: wide-angle and telephoto
- 640×512 thermal imaging for heat-source detection
- AI automatic target recognition and tracking
- Compact foldable airframe for portable carry
- Multi-band image transmission with interference adaptation
Technical Specifications
| Bare weight | ≈930 g |
|---|---|
| Max takeoff weight | ≈1,330 g |
| Max flight time (no wind) | 38 min (5,000 mAh) / 46 min (6,000 mAh) |
| Max hover time (no wind) | 31 min (5,000 mAh) / 40 min (6,000 mAh) |
| Max rotation angular velocity | 130°/s |
| Max level flight speed | 20 m/s |
| Max tilt angle | 30° |
| Max ascent speed | 6 m/s |
| Folded size | 222 × 97 × 91 mm |
| Unfolded size | 348 × 284 × 108 mm |
| GNSS | GPS + Galileo + BeiDou + GLONASS / Pure BeiDou |
| Image sensor | 1/2″, 48 MP |
| Thermal imaging resolution | 640 × 512 |
| Ground station language | Chinese, English, Russian |
| Image transmission distance | 1.5–3 km / 3–6 km / 6–10 km |
Applications
Multi-sensor reconnaissance with wide-angle and telephoto coverage, thermal surveillance, target identification, and rapid-deployment security operations.
Deployment note: Final configuration, operator training, airspace approval, and local regulatory compliance are required before deployment.
