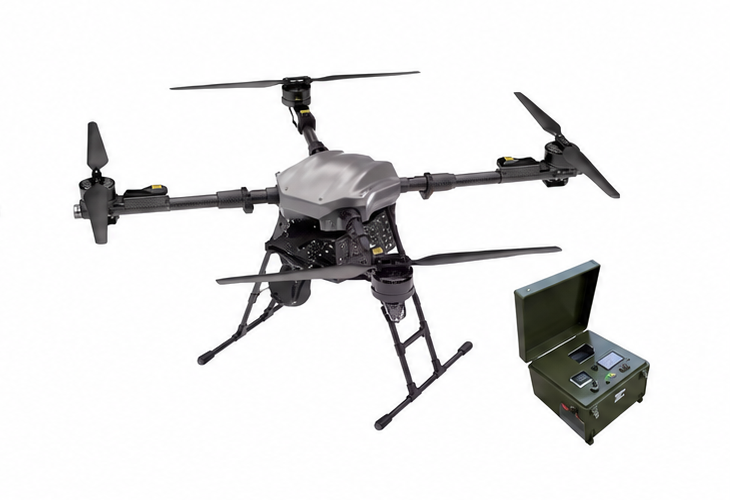

The Tethered Drone TK1400 is a persistent-operation platform suited to approved civil and industrial observation or illumination configurations.
Key Capabilities
- Tethered 50 V operating system
- 15 km control distance
- IP55 protection level
- Level 7 wind resistance
Technical Specifications
| Unfolded dimensions | 1,100 x 1,100 x 600 mm |
|---|---|
| Folded dimensions | 700 x 700 x 600 mm |
| Diagonal wheelbase | 1,400 mm |
| Payload | 12 kg |
| Positioning accuracy | Horizontal +/- 0.2 m; vertical +/- 0.2 m |
| Maximum horizontal speed | 20 m/s |
| Maximum climb / descent speed | 5 m/s / 3 m/s |
| Maximum takeoff weight | 22 kg |
| Protection level | IP55 |
Industrial Applications
Persistent civil observation, site lighting, communications support, and other lawful industrial tasks using an approved payload configuration.
Deployment note: Final configuration, operator training, airspace approval, and local regulatory compliance are required before deployment.
